Folder gluer machine adjustment steps

Publish Time: 2022-10-28 02:38 Author: Site Editor Visit: 404

Folder gluer machine adjustment steps:
1. Carefully check the work order and samples, determine the glue used, and prepare it;
2. Adjust the width of the baffles to be pasted, the two sides should be parallel, and just put down the semi-finished color box to be produced, the distance between the baffles on both sides of the color box is less than 1mm, and then adjust the limit bolts to ensure that each-only product to be pasted is smooth The phenomenon of passing without fetters appears;

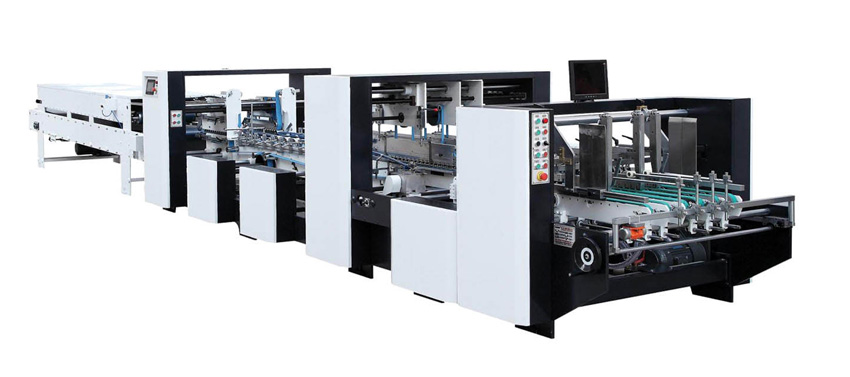

Automatic High-Speed Folder Gluer

3. Adjust the slope and height of the bracket in the area to be glued, so that the products to be glued can move forward smoothly without the occurrence of fetters, and adjust the auxiliary guide rail and flow wheel after pressing. Make its size suitable for the color box to be pasted;
4. Adjust the gluing belt and gluing guide rail, and then adjust the gluing host and wheel closing pressure, and cross-fit with the belt;
5. Adjust the glue tank, and check whether the glue in the glue tank is sufficient, the amount of glue should be submerged in 80% of the rubber wheel, and then adjust the glue tank and the glue position;
6. Turn on the power switch, the main motor switch, and the vibration switch key. After the machine is adjusted, press the "run" or "inch" key, press the "feed" key to debug the machine, and check whether the machine performance is abnormal, and the skew should be corrected immediately. ;
7. After the debugging is ok, test the machine 5-10 sheets first, confirm the position and forming specifications, and then adjust the speed of the machine;
8. When gluing the box, pay attention to the paper feeding state of the gluing box, and do not exceed the line, off-line, or dislocation, so as not to affect the appearance and forming effect of the color box;
9. First confirm: strictly follow the first-piece signature method;
10. After the production is completed, clean the machine and keep it clean.

The above is the adjustment steps of the folder gluer machine shared by Rolam Machinery, the manufacturer of the folder gluer. I hope it will be helpful to you.
