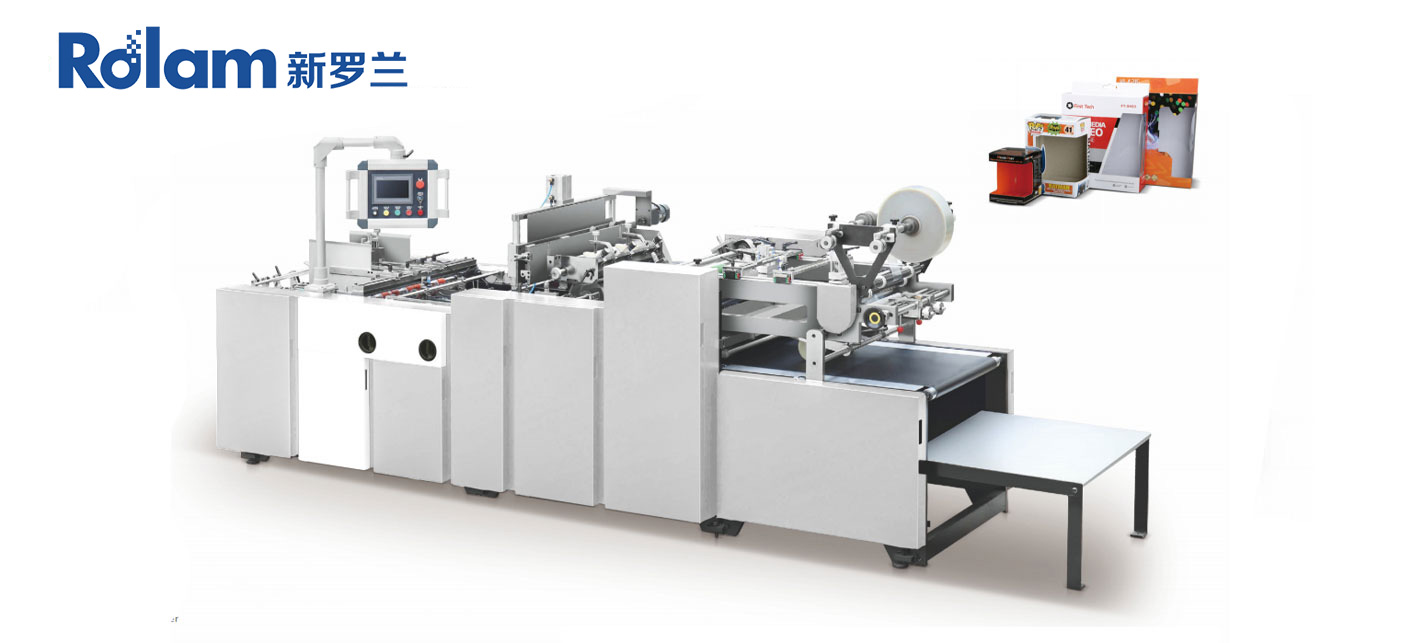

Window Patching Machine TC-750

Structural characteristics

• The paper feeder is driven by a servo of a famous brand. Paper is delivered on the bottom via an intermittent belt, so paper can be fed continuously without shutdown. The paper feeder is controlled by PLC. lt has a human machine interface, on which you can enter the length of paper to be fed, so that paper can be supplied quickly and accurately. Also, the paper feeder applies to card paper and corrugated paper.



• (1) It is easy to adjust the basic part of the film feeder left and right in parallel.

  (2) The film feeder is controlled by a servo control system of a famous brand. It is only required to enter the length to be cut on the touch screen, which improves accuracy and makes adjustment easy.

  (3) The film feeder can cut corners and creasing lines automatically. It applies to products subject to single (double) line creasing and corner cutting. Also it can be adjusted at will.



• (1)The sizing section consists of chromed sizing roller, glue separating guide, side limiter and sizing template roller. It is easy to pull out, set and clean the sizing section.

  (2)The glue separating guide can be adjusted to control I the range and amount of glue. In the event of shutdown, the cylinder can raise the sizing roller and it is driven by the other independent motor to avoid glue solidification.

  (3)Without shutdown, the gluing roller can be adjusted freely on an axial or radial basis.



• The paper collector is designed as a belt and final product can be stacked in order.

Main Technical Parameter

Model	TC-750
Speed	6000-10000pcs/h
(speed can changed according to the papersize)
Paper Length	140 - 600mm
Paper Width	120 - 750mm
Film Length	60-350mm
Film Width	30-400mm
Thickness of Film	0.03-0.25mm
Main Power	2.2kw
Power of Pump	1.5kw
External Dimension	5000×1550×1770 mm
Machine Weight	2800kg
