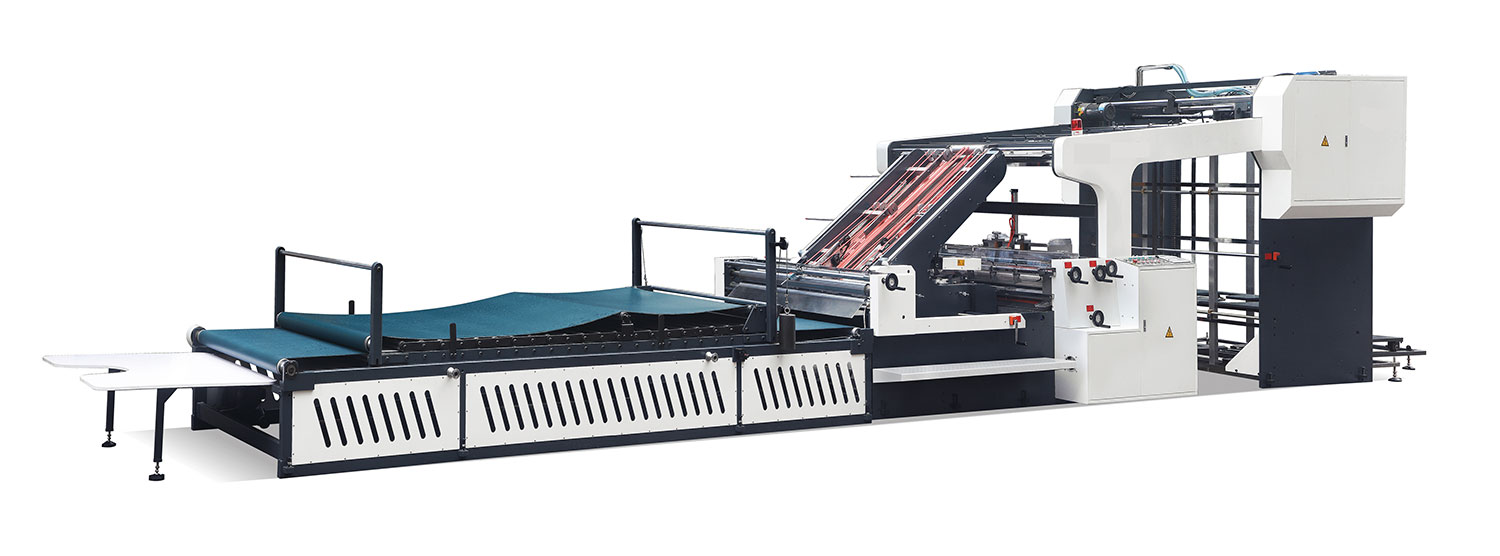

Intelligent Laminating Machine YB-1450G/ 1650G

Model

YB-1450G

YB-1650G

Max Sheet Size

1450×1300mm

1650×1450mm

Min sheet Size

500×500mm

500×500mm

Top Sheet Thickness

150-600g

150-600g

Bottom Sheet Thickness

300g-4mm

300g-4mm

Max Speed(sheets/hour)

150m/min

150m/min

Fitting Precision

±1mm

±1mm

Measurement

12.5×2.2×2.4M

13.5×2.4×2.4M

Machine Weight

7000kg

7500kg

Machine Power

20KW/380V

20KW/380V

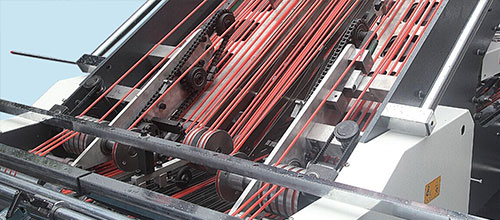

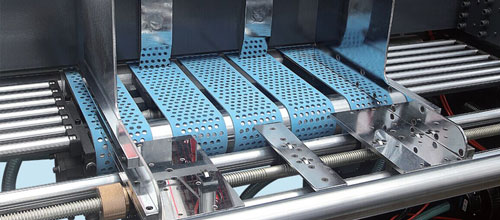

Bottom Paper Feeding

Use imported Servo motor electric controlling system,
with Japan  NITTA suction belt to make suction power inverter,
and belt cleaned by water roller;
Patented technology to ensure corrugate and
cardboard goes out smoothly and simple operation.

Top Sheet Feeding Mechanism

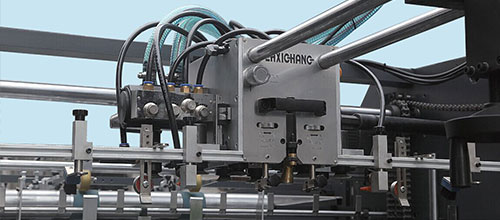

Equipped with high speed auto dedicated feeder,
both paper lifting and feeding nozzle can freely adjust angle to the paper,
to ensure that whether thick or thin paper can be delivered rapidly and smoothly.

Positioning Part

Servo control of the intermittent fixed position,
in the process of positioning, positioning gauge work as
"start – speed up – trackingspeed reduction-stop"
curve speed run, make sure positioning more accurate.

Side Positioning

Left and right side synchronous block complete the accurate positioning,
both top sheet and bottom paper are
equipped with accurate positioning device on left and right.

Glue Roller

Stainless steel roller, never rust, after narrowly grinding,
guaranteed the minimum amount glue coated evenly.
Down roller be cleaned by water roller.

Transmission

With imported double teeth belt drive and
Switzerland ROSTA tension device ensure
the drive accurate, stable and low noisy.

Electrical System

Designed in the accordance with European CE requirement,
ensure machine stability, high efficiency and low failure.
Using man-machine interface and PLC combination,
display all the information, such as warning, error detect,
failures, and operating speed, etc on the screen at a glance.

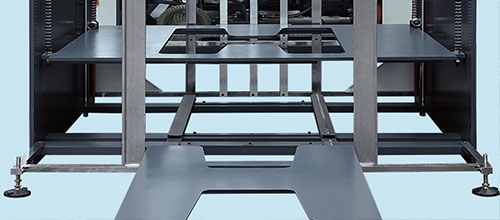

Pre-stack Part

Pre-stack pile of paper under the condition of non-stop, improve efficiency.
The special design of the pre stack paper frame, save time and effort.
