Max speed 10000sheet/hour
The most advanced electrical control system
Full accomplishment of intelligence and automation
Automatic adjustment when changing sheet size
Curve velocity assures the high accuracy
The newest technology of intermittent registration
Top and bottom sheet automatic tracing
Bottom sheet left and right whole course correction
Top sheet left and right whole course correction
Intelligent detection of sheet length
Intelligent error display and alarm system
Intelligent glue supplying and recycling system
Intelligent cleaning and water circulation system
Bottom sheet bend and pressurize device
Bottom sheet suction power adjustment device
US MAC component opens and closes suction
Stainless steel gluing cylinder
Anti glue swing device
|
Model |

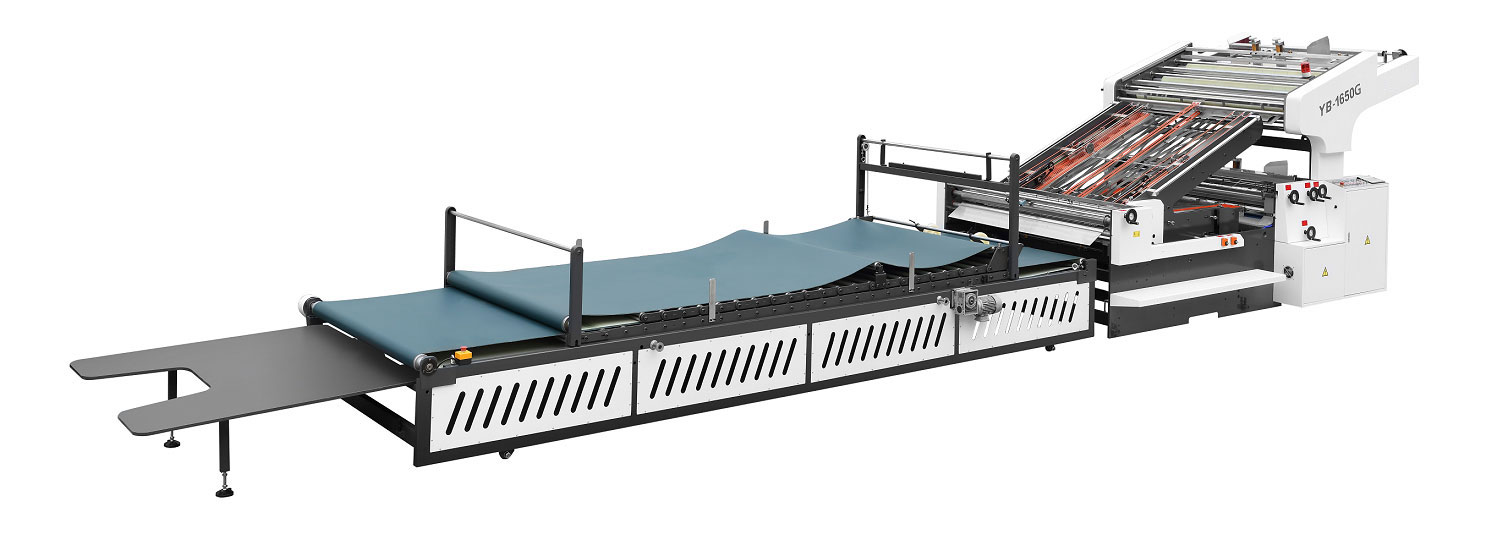

YB-1650G Corrugation to Corrugation |
|
Max. sheet size |
1650X1450mm |
|
Min. sheet size |
550X550mm |
|
Max Speed |
100m/min |
|
Accuracy |
±1.5mm |
|
Overall |
10X2.4X2.3M |
|
Machine weight |
8000kg |
|
Machine power |
22KW/380V |
|
Top paper |
A/B/C/E/F Two layers corrugated paper |
|
Bottom paper |
A/B/C/E/F Two layers corrugated paper |
|
Top and Bottom paper feeding Use imported Servo motor electric controlling system, |
 |
 |
Top Sheet Feeding Mechanism Servo control of the intermittent fixed position, in the process of positioning, positioning gauge work as "start – speed up – trackingspeed reduction-stop" curve speed run, make sure positioning more accurate. |
| Side Positioning Left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right. |
 |
 |

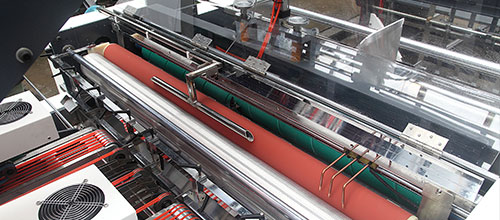

Glue Roller Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller. |

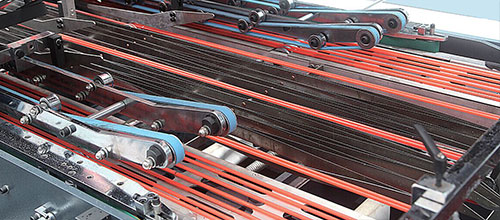

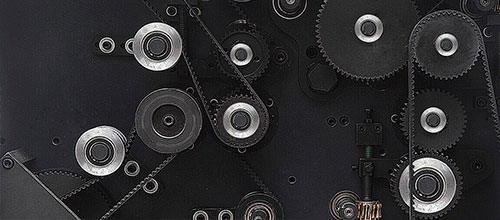

| Transmission With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy. |
 |
 |

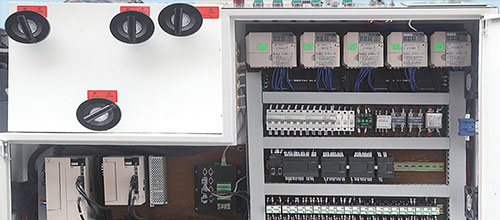

Electrical System Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance. |
