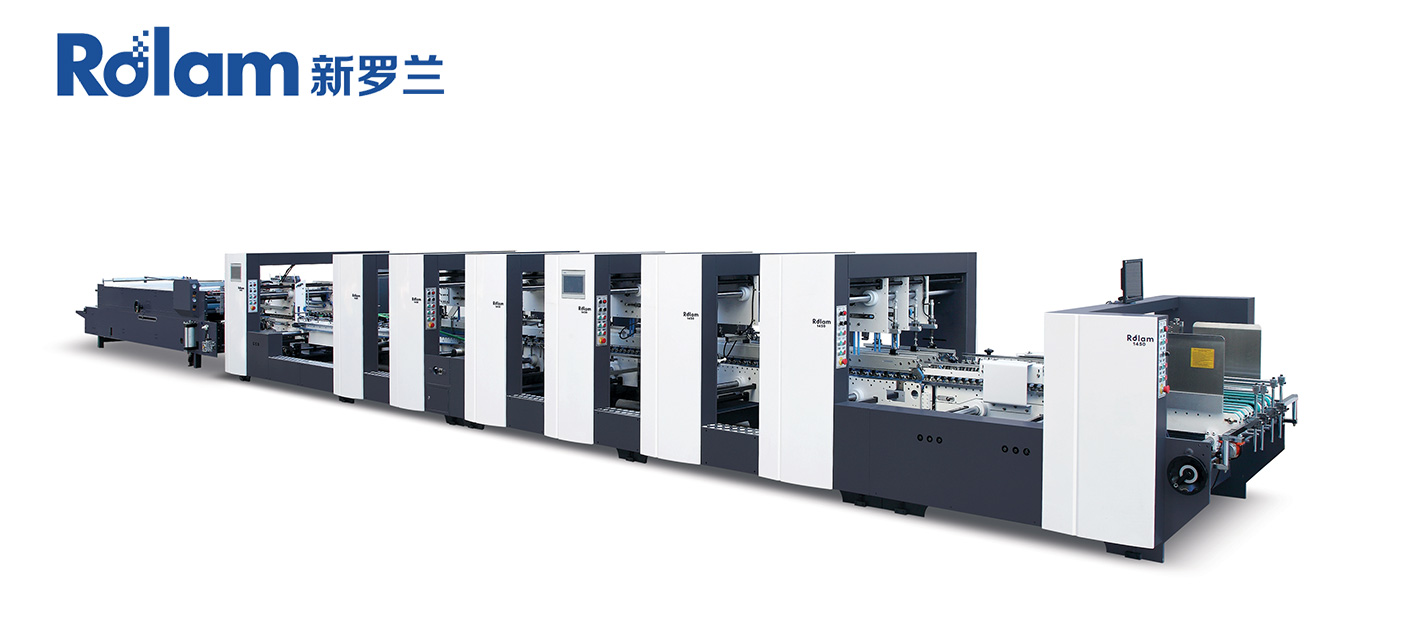

·PCS Automatic high speed 4 and 6 corner folding gluing machine

·Each set is controlled by independent motor.

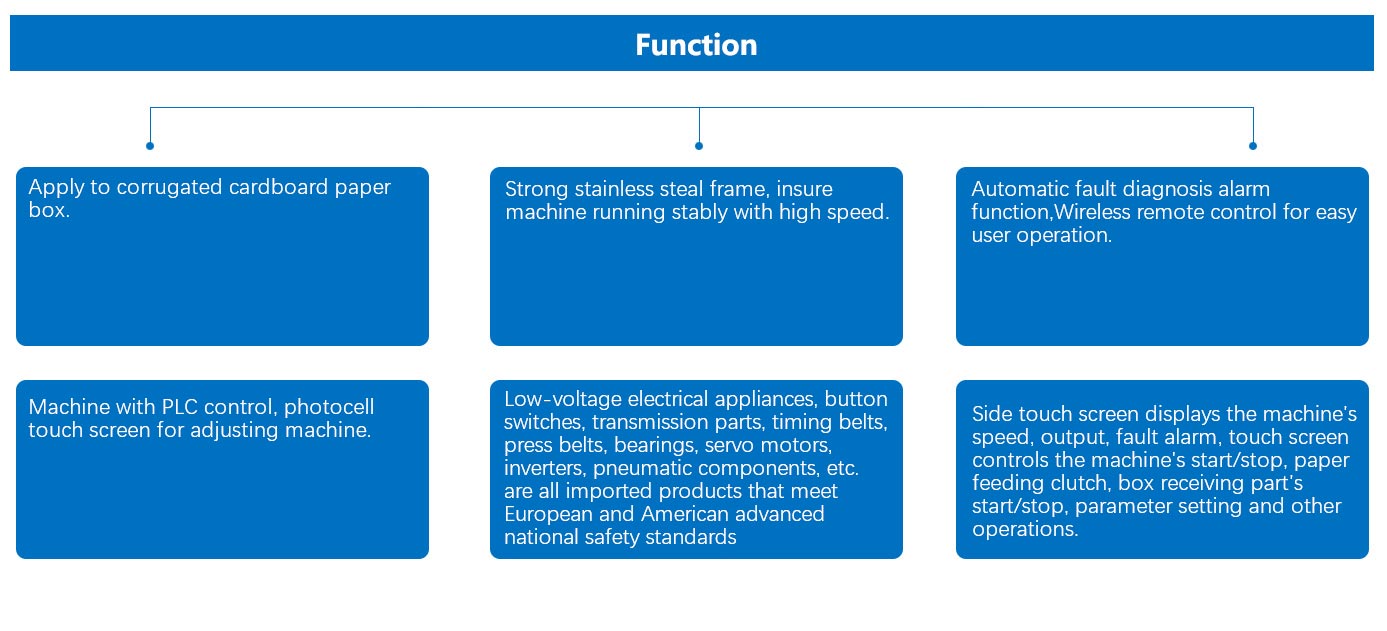

·Adopts electrical regulating board, PLC, imported electronic components, three plates track mode device.

·Aluminum plates are all Chute structure, which is easy to add spare parts.

·The machine is especially designed for all kinds of 4/6 corner cardboard& corrugated boxes.

MODEL	1200	1450	1600	1800
Paper Material	Cardboard 210-800 GSM, A/B/E Flute
Max Speed	260 M/Min
Max Thickness of Folded Box	12 MM	12 MM	12 MM	12 MM
Way of Folding	Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180°
Power Supply	3P 380V 50HZ
Blank Width	1200 MM	1450 MM	1600 MM	1800 MM

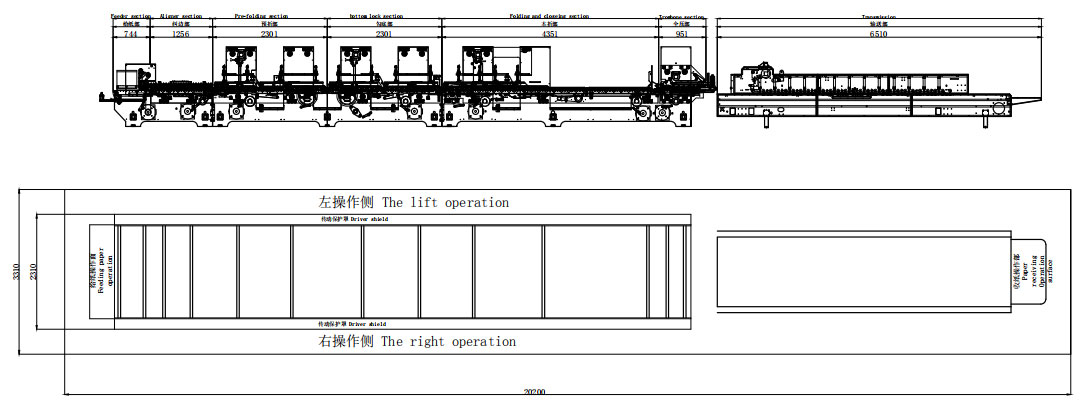

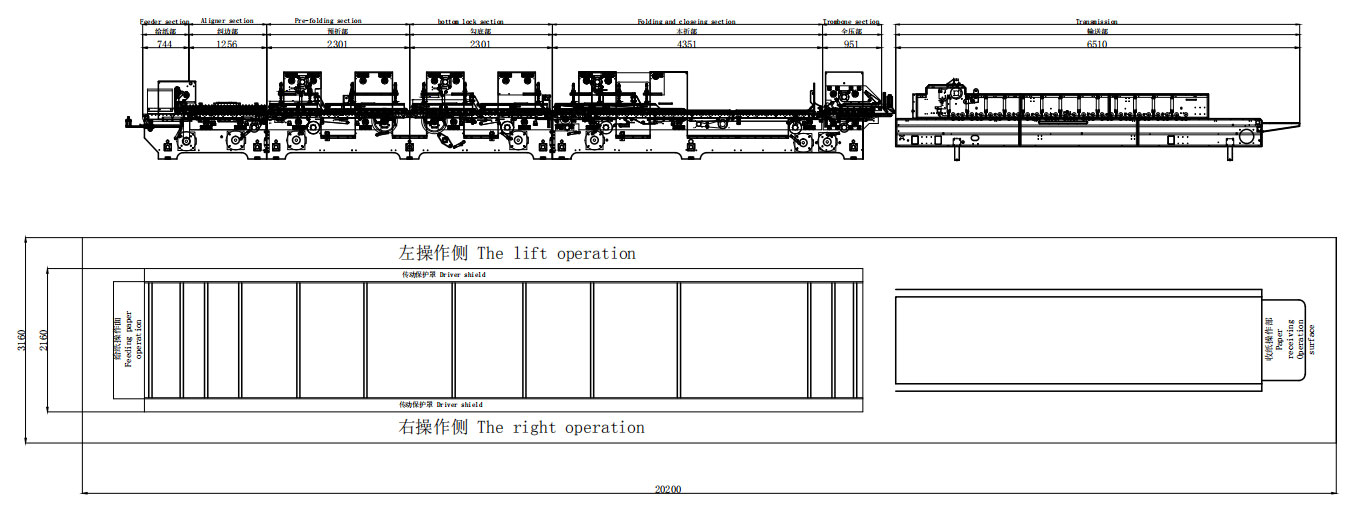

Length X Width X Height	20.5x1.86x1.7m	20.5x2.14x1.7m	20.5x2.24x1.7m	20.5x2.49x1.7m
Net Weight	11 T	12 T	13 T	14.5 T
Total Power	32 KW	32 KW	32 KW	34 KW

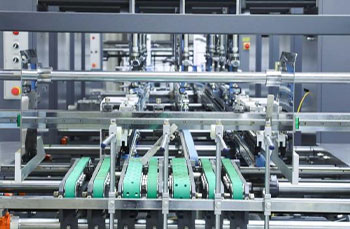

Feeding Section ·Feeding belts equipped with the function of air suction ·Equipped with new type of feeding knife ·With special pushing teeth function ·Vibration device coordinate with motor
Aligner Section ·Correcting the paper from feeding ·Pressing drive pressure is adjustable to fit the paper thickness
Pre-folding Section ·First folding line 180°, third folding line 135° pre-folding

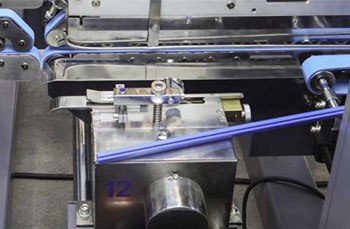

Lower Gluing Tank ·Large volume. ·Easy to remove and clean ·Electronic upper gluing system by guns

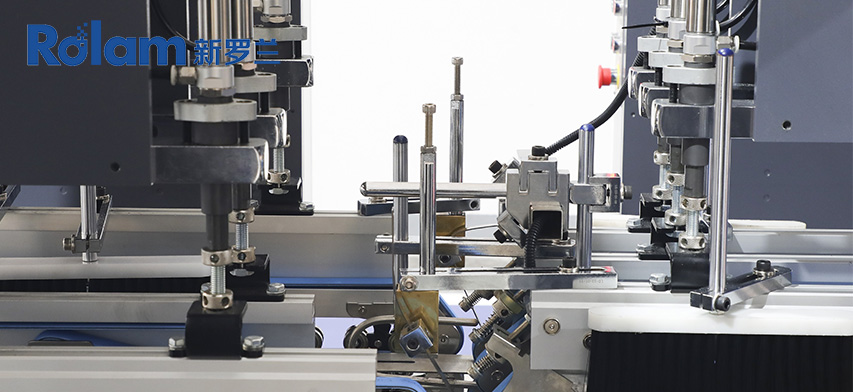

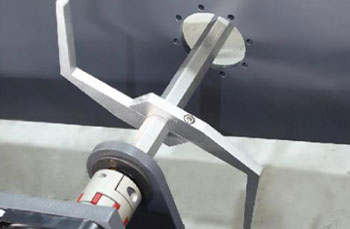

4/ 6-corner Device ·Motorized and untimed electronic back folding system ·Intelligent servo motor technology

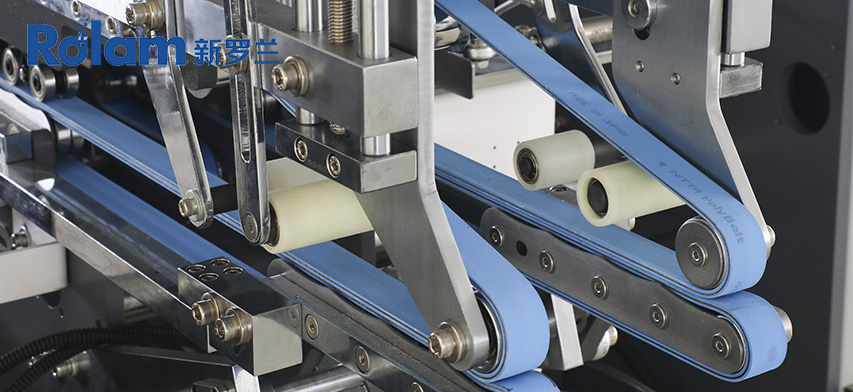

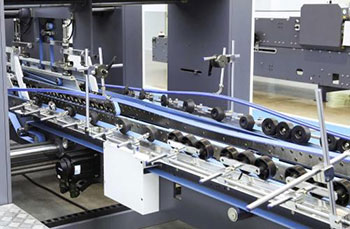

	Folding and Closing ·Equipped with flexible box forming device ·The upper pressure belt adopts the main drive and cylinder pressure

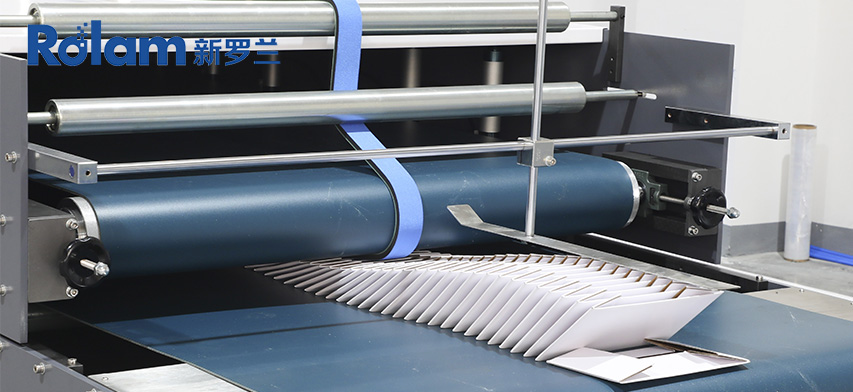

	Trombone Section ·Belt can be adjusted independently. ·Independently adjust the speed, and draw back the distance of the paper ·Equipped with electronic photoelectric counting function, convenient for counting

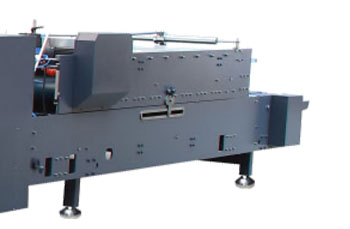

	Conveyor ·Has regulator, patting device Can effectively avoid the "scissors mouth" phenomenon of corrugated products. ·Adopts waiting function It will be automatically enabled when the feeding section is paused ·If has error in paper collection unit it will automatically stop the machine work.

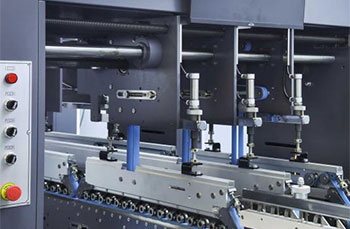

	Spraying System ·Equipped with 3 guns ·Convenient in the production of 4/6 corner box and various special-shaped box ·Gluing quickly and accurately sizing

Straight Line Box
Way of Folding: Three Carriers
Model	1200 Type	1450 Type	1600 Type	1800 Type
B+C+D+E	280-1200	350-1450	350-1600	350-1800
E (Min)	30	30	30	30
E (Max)	500	500	500	700
F	100-1350	100-1350	100-1400	100-1700
G(Max)	1450	1450	1500	1600
Crash Lock Bottom Box
Way of Folding: Three Carriers
Model	1200 Type	1450 Type	1600 Type	1800 Type
B+C+D+E	280-1200	350-1450	350-1600	350-1800
E (Min)	30	30	30	30
E (Max)	500	500	500	700
F	100-1100	100-1350	100-1500	100-1700
G (Max)	1400	1400	1400	1600
H (Min)	35	35	35	35
L	30-120	30-120	30-120	30-120
4 Corners Box
Way of Folding: Three Carriers
Model	1200 Type	1450 Type	1600 Type	1800 Type
A+B+C	250-1000	250-1250	250-1400	250-1600
B (Min)	180	180	180	180
F	150-900	150-900	150-900	150-900
G (Max)	900	900	900	900
H (Min)	25	25	25	25
L	30-120	30-120	30-120	30-120
6 Corners Box
Way of Folding: Three Carriers
Model	1200 Type	1450 Type	1600 Type	1800 Type
A+B+C+D+E	345-1000	345-1250	345-1400	345-1600
B (Min)	120	120	120	120
C (Min)	35	35	35	35
F	150-900	150-900	150-900	150-900
G (Max)	900	900	900	900
H (Min)	25	25	25	25
L	30-120	30-120	30-120	30-120
