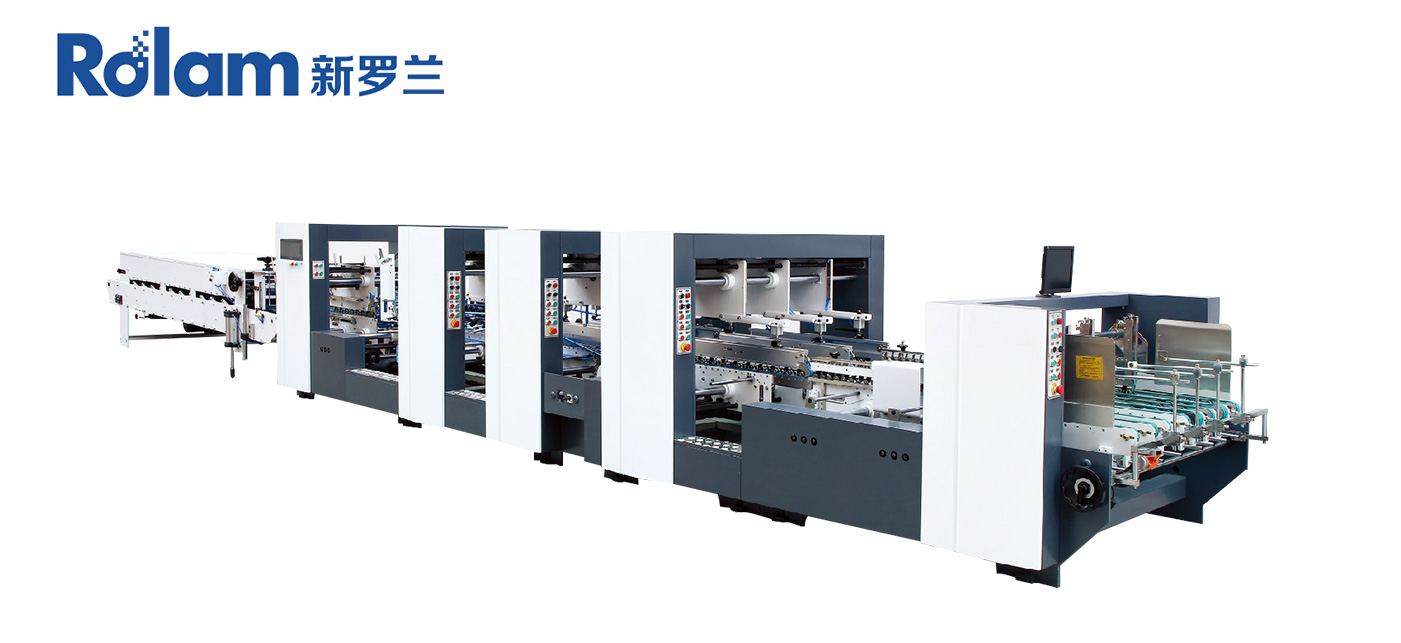

• PC-G Automatic high speed folding gluing machine, Perfect solution to work in the heavy packaging industry.
• Wide range of accessories that allows to different kinds of designs.Fast, steady and precise machine, easy to set up and operate.
• All sections with independent motor driving system.
• Motorized carrier movement with high precision linear guides.
• Able to produce complex carton structures, straigh line, lock bottom and more
|
MODEL |
1200 |
1450 |
1600 |
|
Paper Material |
Cardboard 210-800 GSM, A/B/E Flute |
||
|
Max Speed |
260 M/Min |
||
|
Max Thickness of Folded Box |
12 MM |
12 MM |
12 MM |
|
Way of Folding |
Fold 2 and fold 4 are 180° |
||
|
Power Supply |
3P 380V 50HZ |
||
|
Blank Width |
1200mm |
1450mm |
1600mm |
|

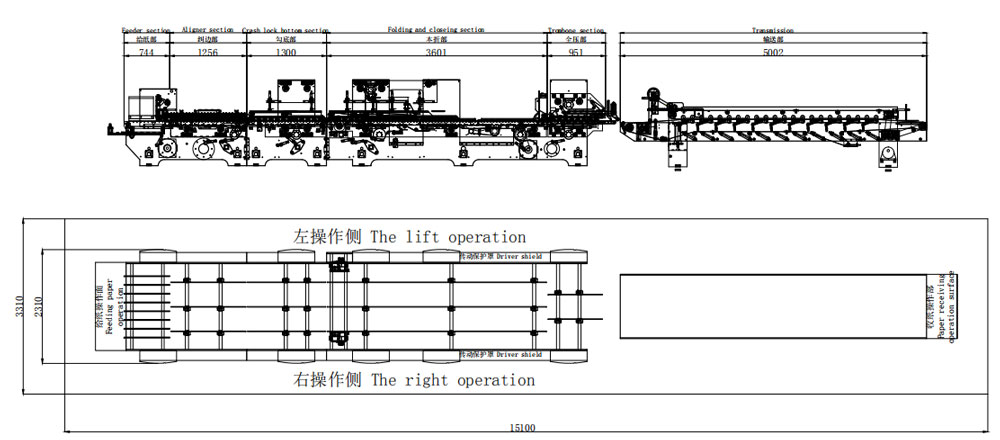

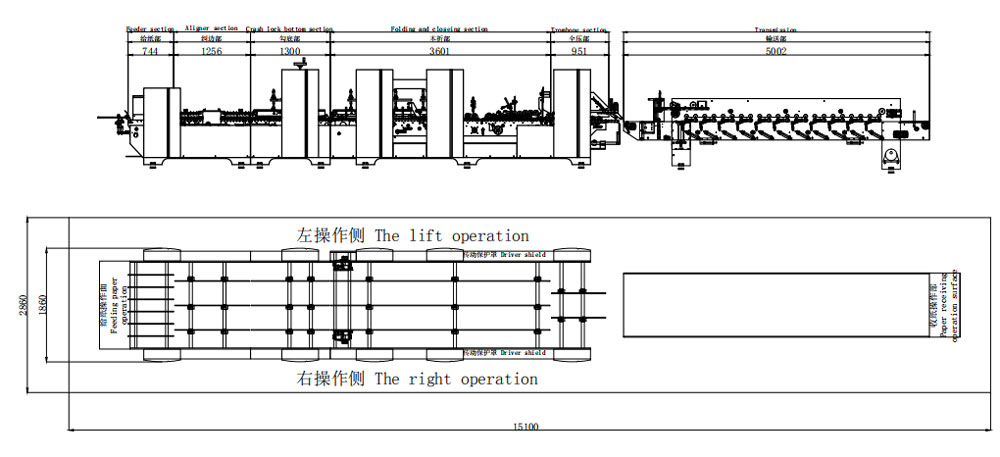

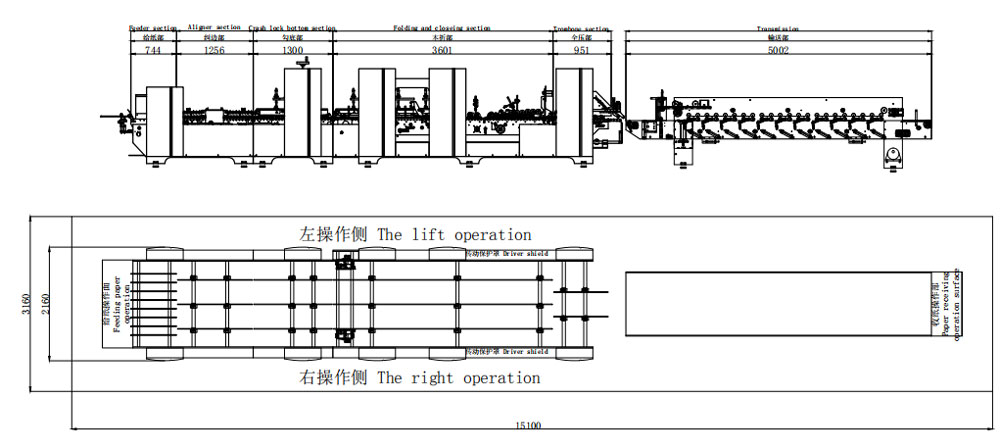

Length X Width X Height |
14x1.9x1.7m |
14x2.2x1.7m |
14x2.3x1.7m |
|
Net Weight |
8T |
9T |
10T |
|
Total Power |
22.28kw |
22.28kw |
22.28kw |

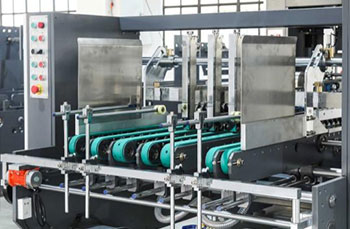

Feeding Section·Feeding belts equipped with the function of air suction |
 |
Aligner Section·Correcting the paper from feeding |
 |
Lock Bottom Section·Fast bottom lock, suitable for auto-bottom boxes |
 |
 |

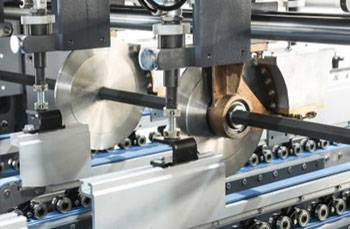

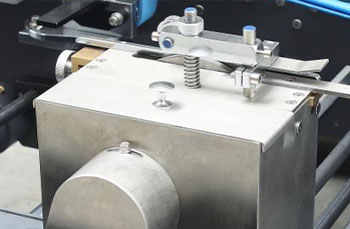

Lower Gluing Tank·Easy to remove and clean |
 |

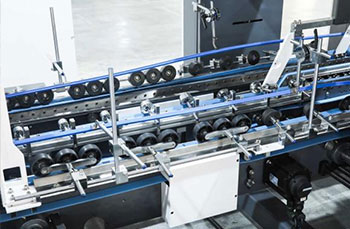

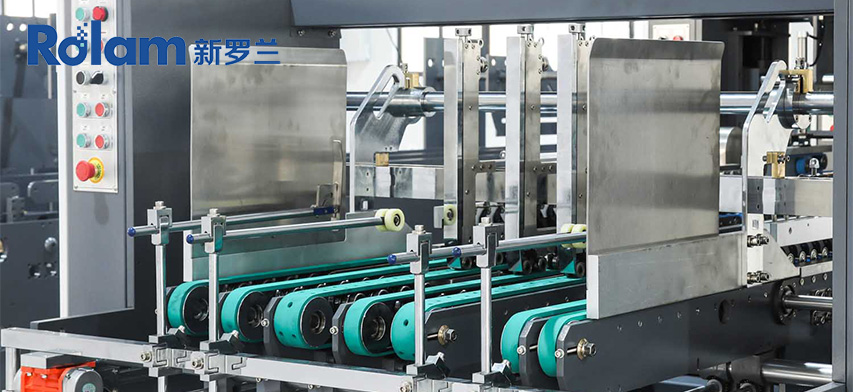

Folding and Closing·Equipped with flexible box forming device |
 |
Trombone Section·Equipped with 3 plate type rail device. |
 |
Conveyor·Up and down belt can be adjusted separately. |
|

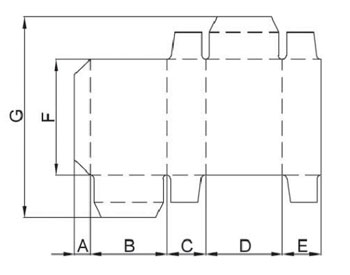

Straight Line Box |
|
||||
|
Way of Folding: Three Carriers |
|||||
|
Model |
1200 Type |
1450 Type |
1600 Type |
1800 Type |
|
|
B+C+D+E |
280-1200 |
350-1450 |
350-1600 |
350-1800 |
|
|
C+D |
140 |
140 |
175 |
175 |
|
|
E(Min) |
30 |
30 |
30 |
30 |
|
|
E(Max) |
500 |
500 |
500 |
500 |
|
|
F |
70-1100 |
70-1100 |
70-1100 |
70-1100 |
|
|
G(Max) |
1100 |
1100 |
1100 |
1100 |
|
|

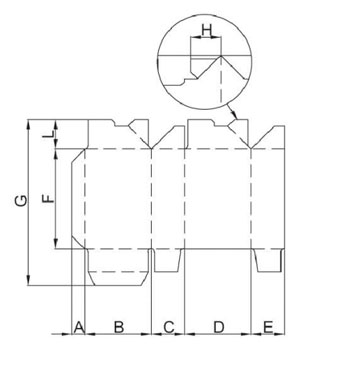

Crash Lock Bottom Box |
|
||||
|
Way of Folding: Three Carriers |
|||||
|
B+C+D+E |
280-1200 |
350-1450 |
350-1600 |
350-1800 |
|
|
C+D |
140 |
140 |
175 |
175 |
|
|
E(Min) |
30 |
30 |
30 |
30 |
|
|
E(Max) |
500 |
500 |
500 |
500 |
|
|
F |
70-1100 |
70-1100 |
70-1100 |
70-1100 |
|
|
G(Max) |
1100 |
1100 |
1100 |
1100 |
|
|
H(Min) |
30 |
30 |
30 |
30 |
|
|
L |
30-100 |
30-100 |
30-100 |
30-100 |
|
