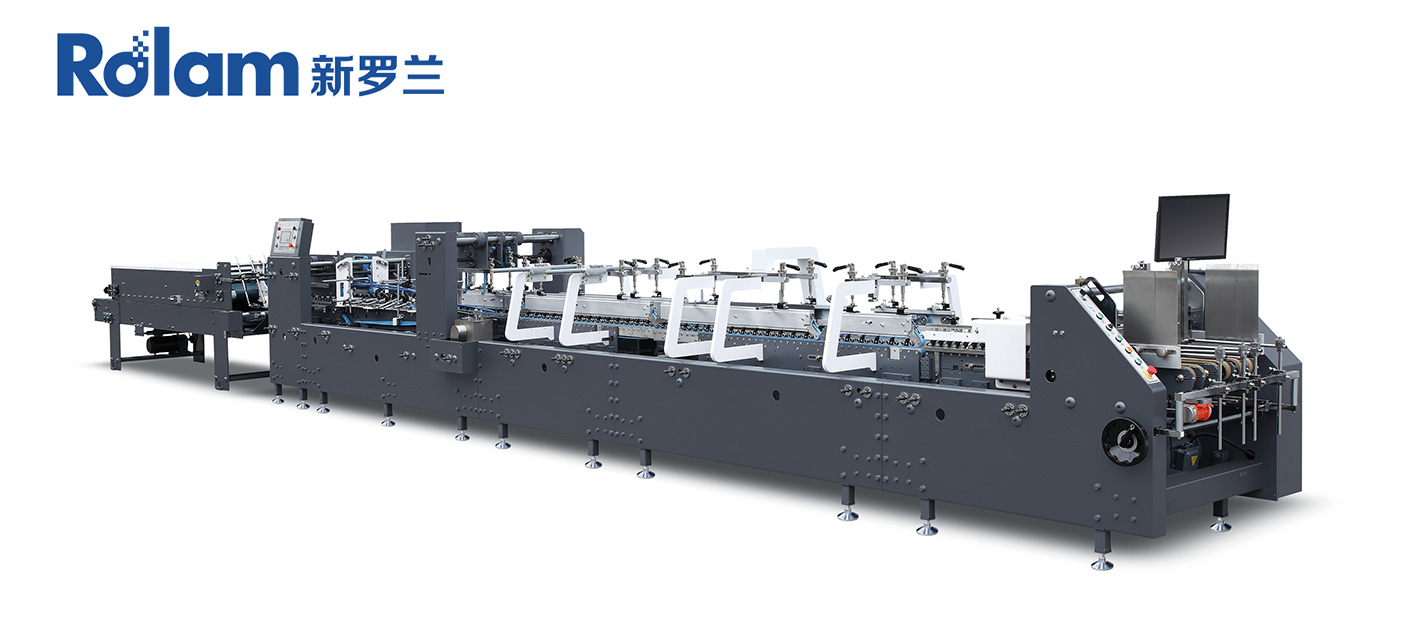

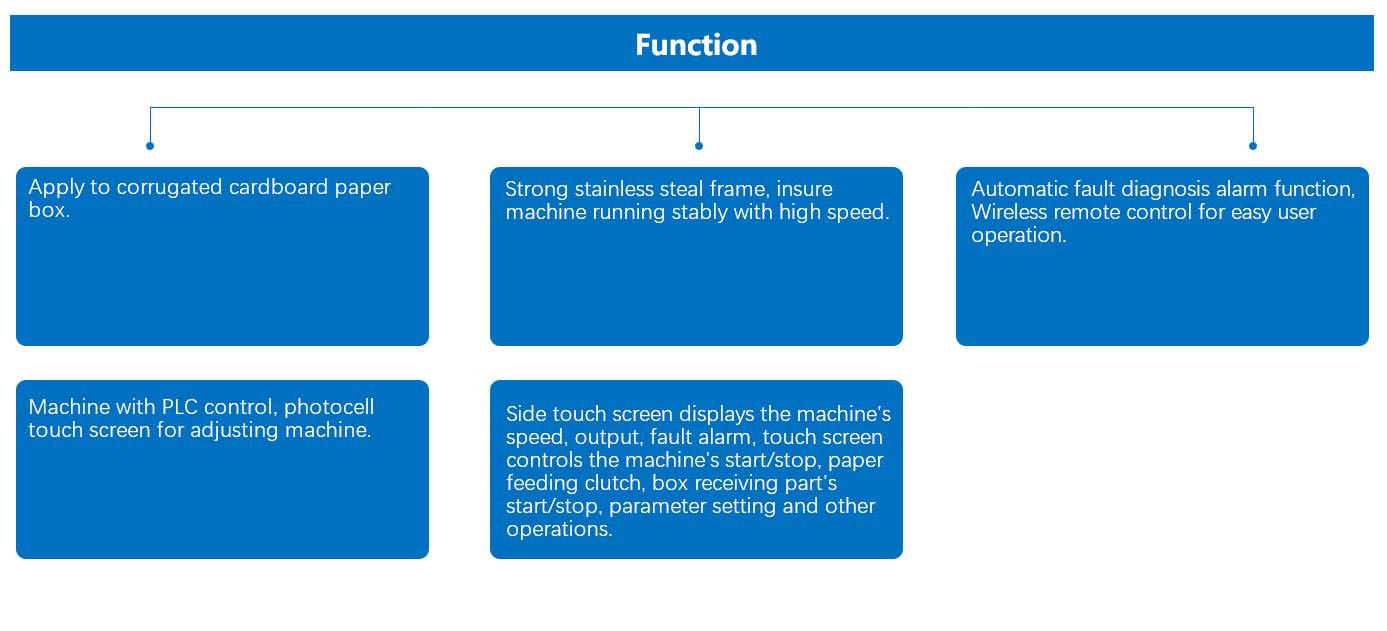

AS Series Automatic Crash Lock Bottom Folder Gluer

MODEL

650

800

1100

Paper material

Cardboard 210-800gsm, E/N/F Flute

Max. speed

300m/min

Max .thickness of folded box

12mm

Way of folding

Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°

Power supply

3P 380V 50HZ

Blank width

650mm

800mm

1100mm

Length x Width x Height

12x1.08x1.4m

12x1.23x1.4m

12x1.58x1.4m

Net Weight

4T

4.5T

5T

Total power

11.2kw

12.7kw

13.4kw

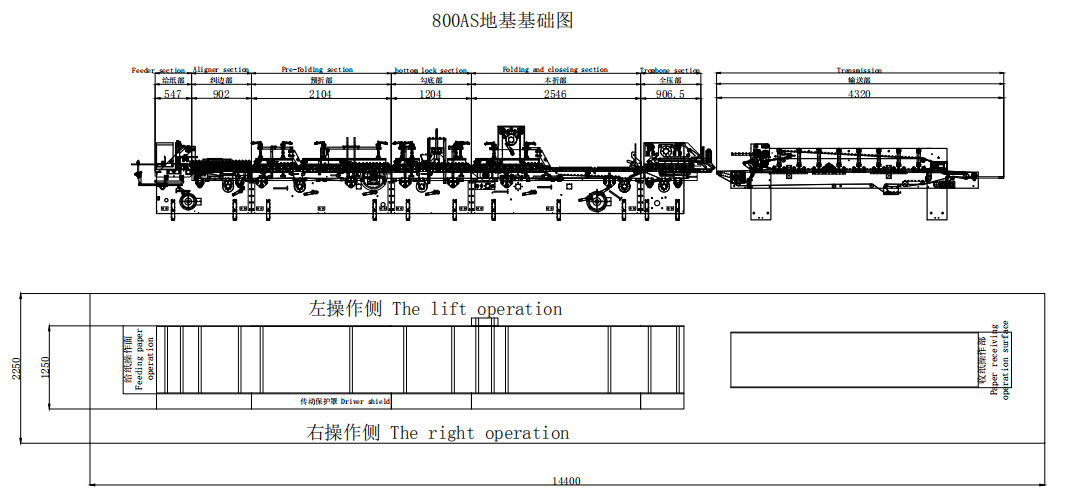

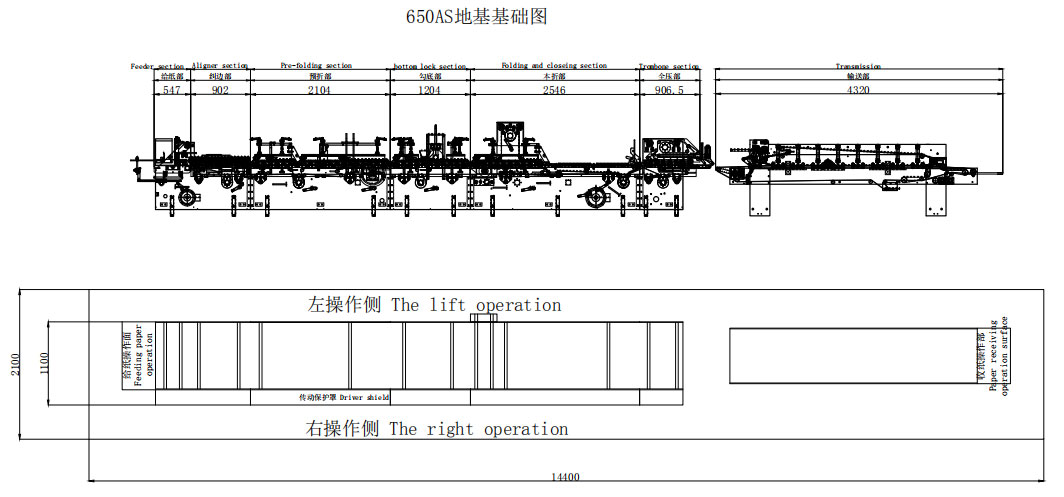

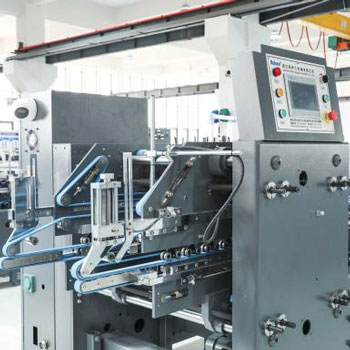

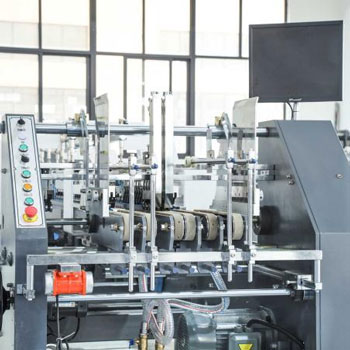

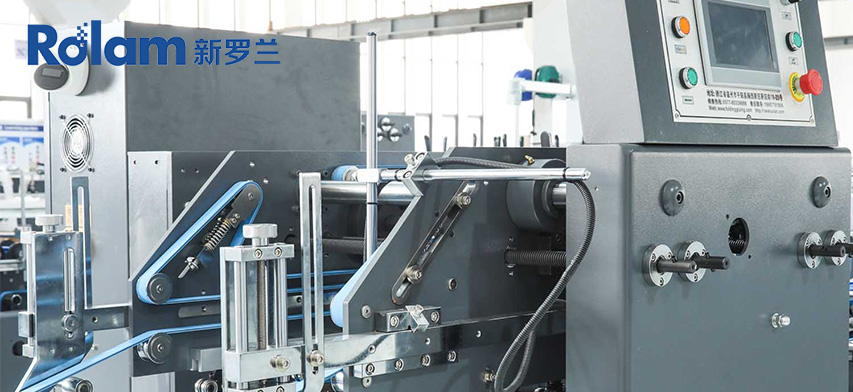

Feeding Section

·6pcs Adjustable feeding belts to ensure easy adjustment,
 stable and smoothly feeding.
·Continuously Variable Speeder to ensure feeding
 internal and stable transmission.
·One-touch Pneumatic knife, easy for the adjustment
 of feeding belts.

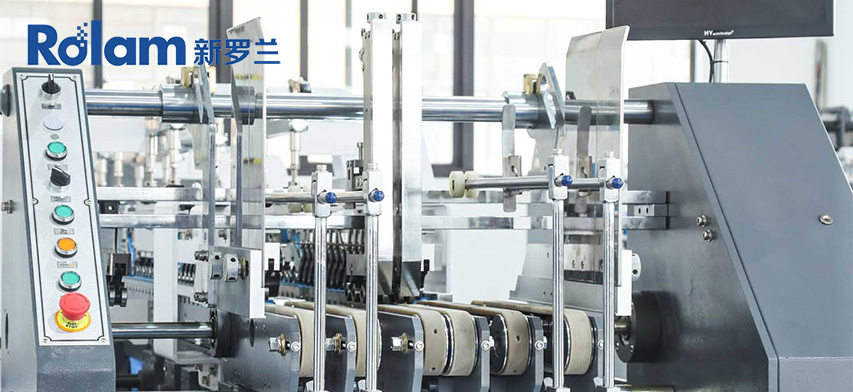

Aligner Section

·Equipped with auto-correction device to correct the
 obliquity and ensure the correct feeding.

Pre-folding Section

·First folding line 180°, third folding line 135° pre-folding

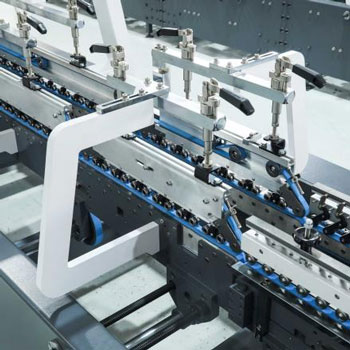

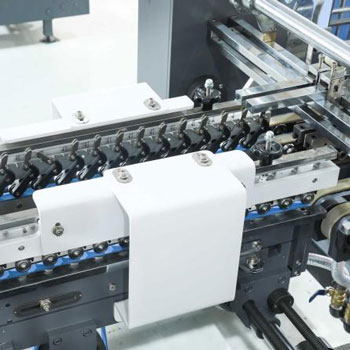

Crash Lock Bottom Section

·Sectional-type upper Belt board with special design.

Lower Gluing Tank

·Large volume.
·Easy to remove and clean

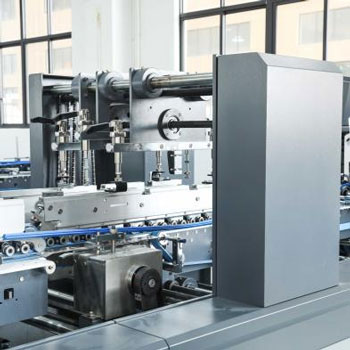

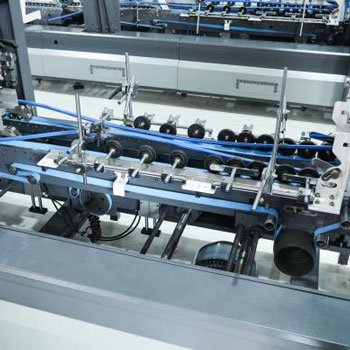

Folding and Closing Section

·Equipped with the driving belt.
·Folding belts have corrective function.
·Extension work, make the box forming more stable.

Trombone

·Adjust the pressure easily and reliably to  ensure
 the gluing quality.
·Equipped with pneumatic counting device which
 makes the counting conveniently.
·Equipped with independent speeder.
 The operator can set the collecting speed.

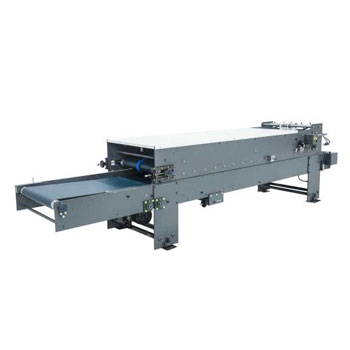

Conveyor

·Equipped with one-touch pneumatic pressure
 adjustment, easy operation.

·Press has two functions:
waiting, when feeding is paused, press will auto
 enter into waiting state.
Travel switch, pause the machine in case of
 wrong collecting.

Straight Line Box

Way of Folding

Two Carries

Two/Three Carries

Model

650 Type

800 Type

1100 Type

B+C+D+E

130-650

130-800

130/200-1100

E (Min)

10

10

20

F

50-800

50-800

50-800

G (Max)

800

800

800

Crash Lock Bottom Box

Way of Folding

Two Carries

Two/Three Carries

Model

650 Type

800 Type

1100 Type

B+C+D+E

130-650

130-800

130/200-1100

E (Min)

10

10

20

F

50-800

50-800

50-800

G (Max)

800

800

800

H (Min)

25

25

25

L

30-100

30-100

30-100
