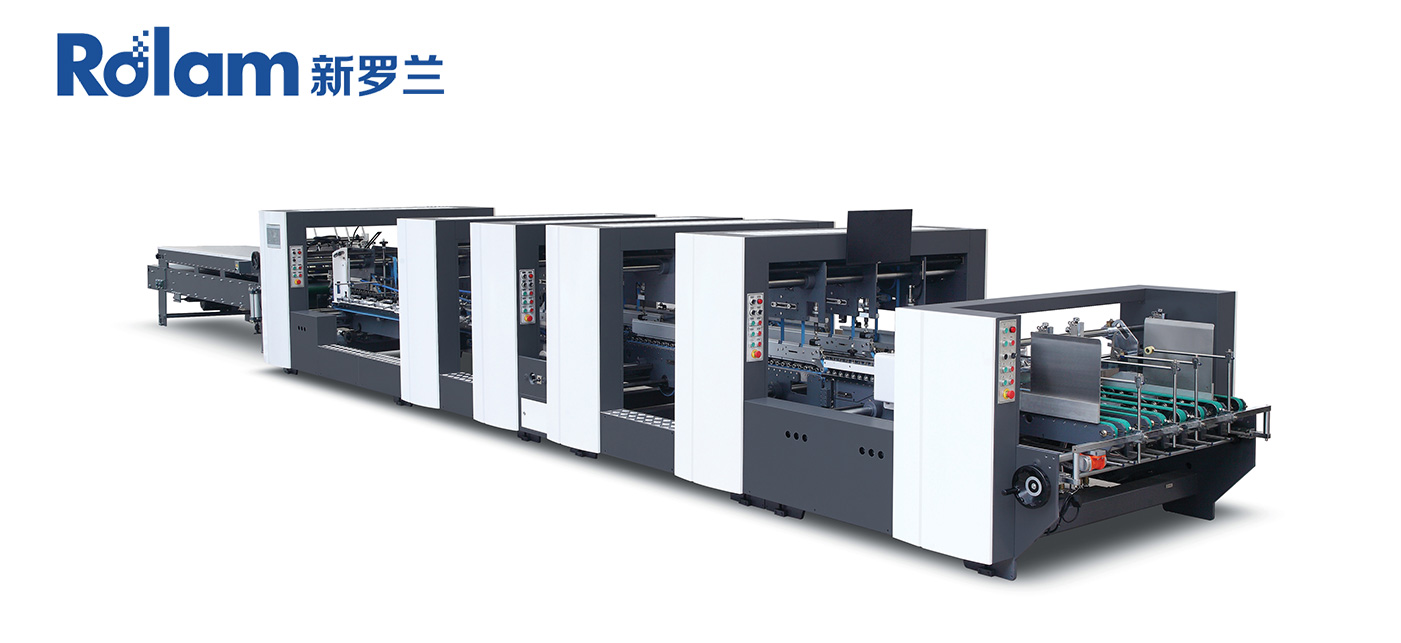

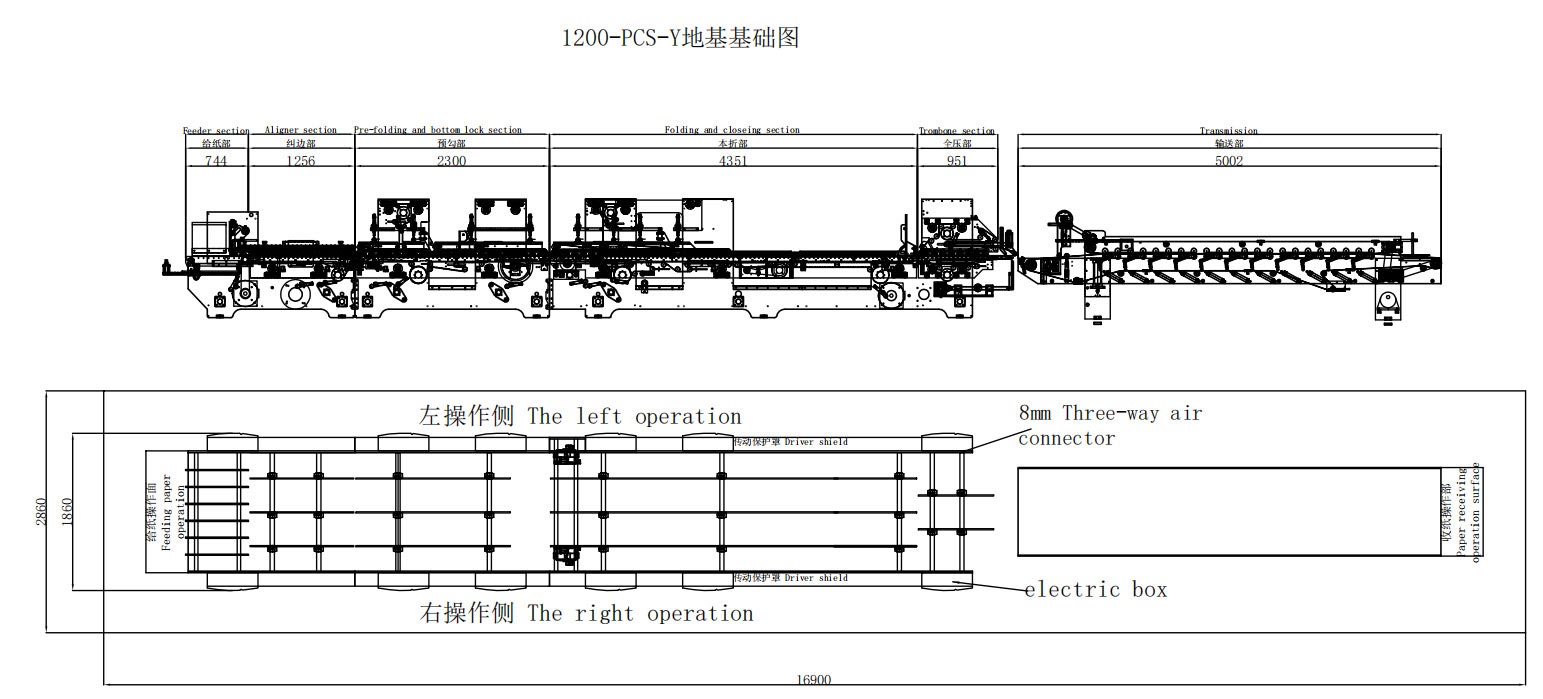

• PCS-Y Automatic High Speed Pre-folding Crash Lock Bottom Folder Gluer

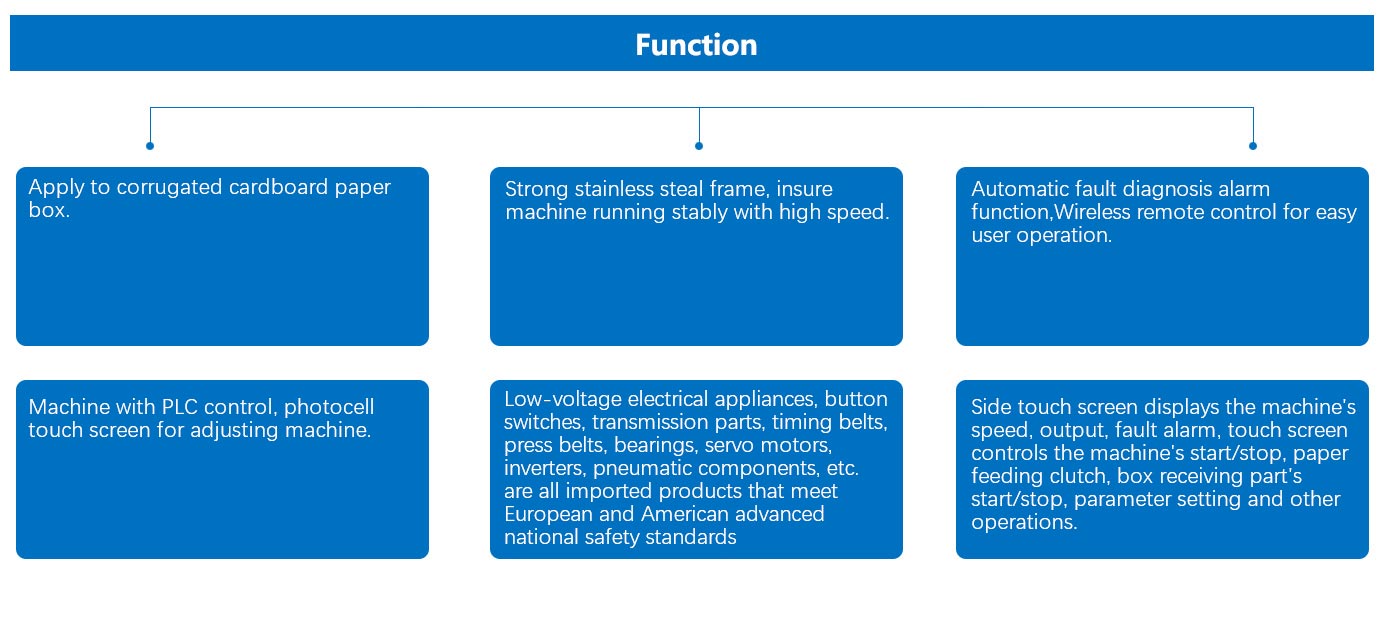

• Each set is controlled by independent motor.

• Adopts electrical regulating board, PLC, imported electronic components, three plates track mode device.

• Aluminum plates are all Chute structure, which is easy to add spare parts.

• The machine is especially designed for cardboard& corrugated boxes.

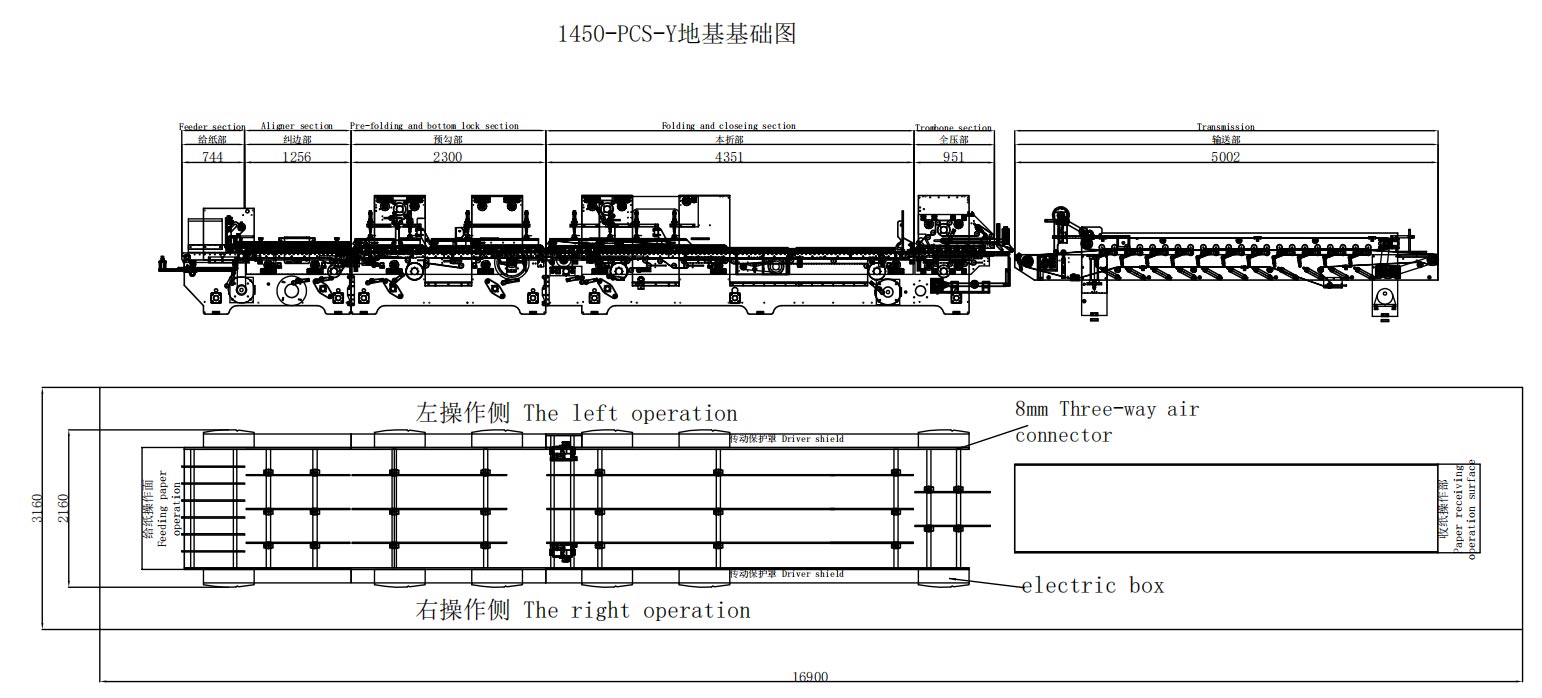

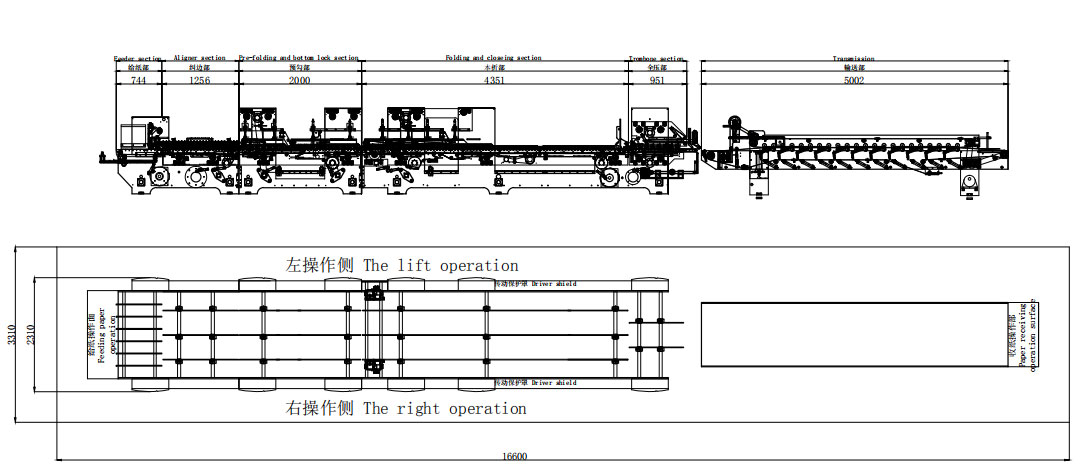

MODEL	1200		1450		1600		1800
Paper Material	Cardboard 210-800 GSM, A/B/E Flute
Max Speed	260 M/Min
Max Thickness of Folded Box	12 MM		12 MM		12 MM		12 MM
Way of Folding	Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180°
Power Supply	3P 380V 50HZ
Blank Width	1200mm	1450mm		1600mm		1800mm
Length X Width X Height	17x2x1.6m	17x2.3x1.6m		17x2.45x1.8m		17x2.65x1.8m
Net Weight	8T	11T		12T		13.5T
Total Power	22.28kw	22.28kw		22.28kw		22.28kw

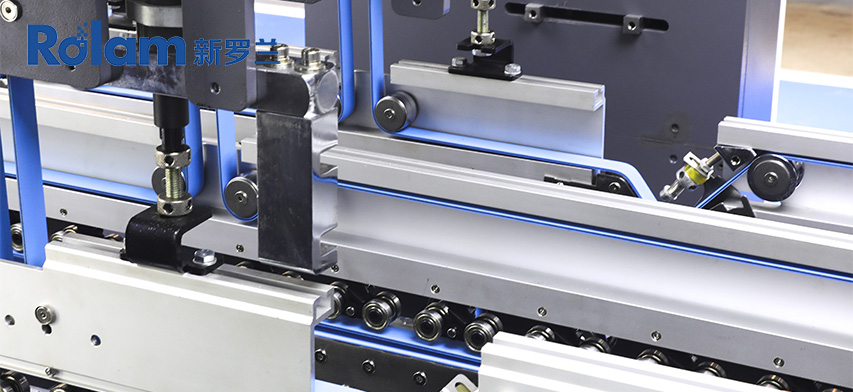

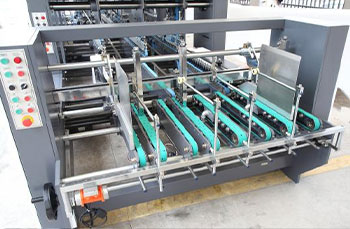

Feeding Section ·Feeding belts equipped with the function of air suction ·Equipped with new type of feeding knife ·With special pushing teeth function ·Vibration device coordinate with motor

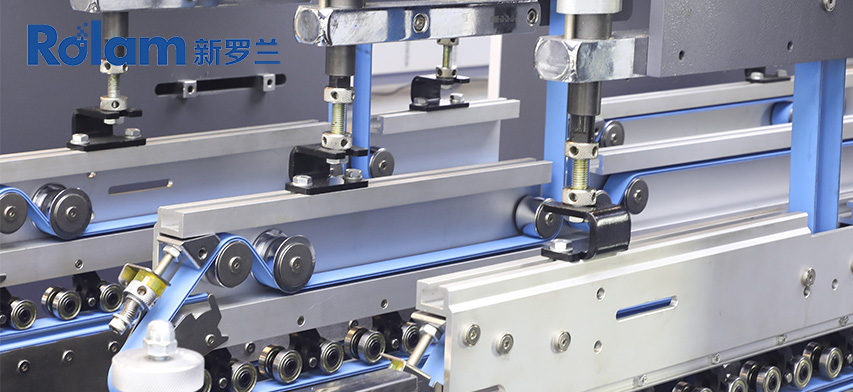

Aligner Section ·Correcting the paper from feeding ·Pressing drive pressure is adjustable to fit the paper thickness

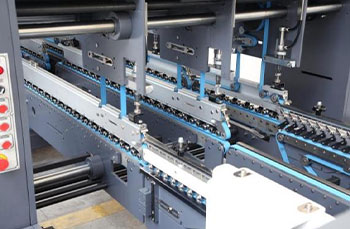

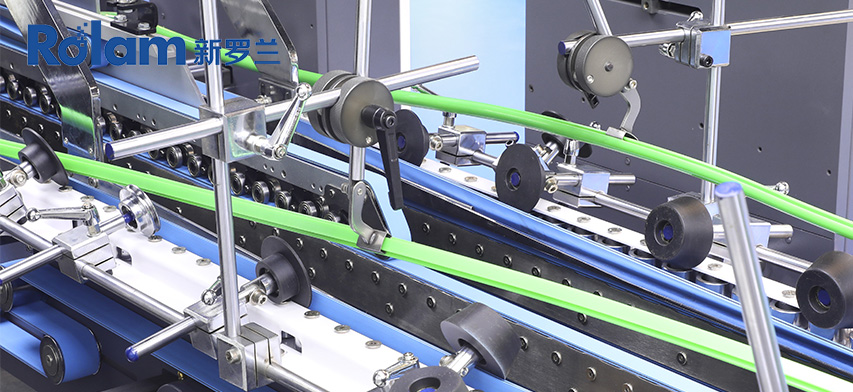

Pre-folding & Lock Bottom Section ·First folding line 180°, third folding line 135° pre-folding ·Fast bottom lock, suitable for auto-bottom boxes

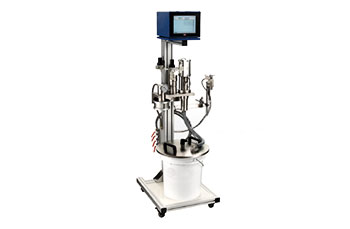

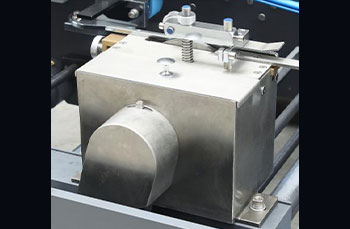

Lower Gluing Tank ·Large volume. ·Easy to remove and clean ·Electronic upper gluing system by guns

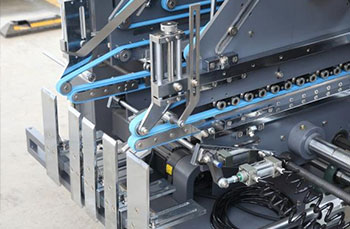

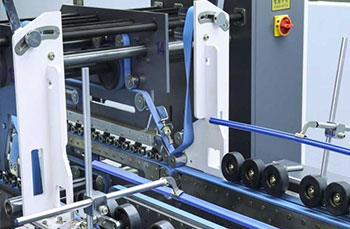

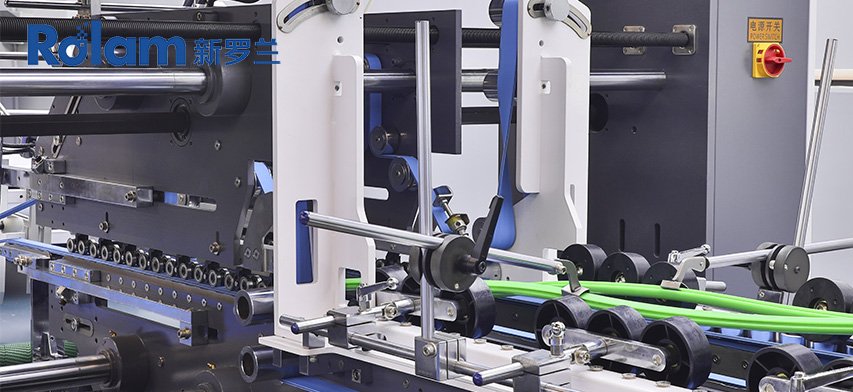

	Folding and Closing ·Equipped with flexible box forming device ·The upper pressure belt adopts the main drive and cylinder pressure
	Trombone Section ·Belt can be adjusted independently. ·Independently adjust the speed, and draw back the distance of the paper ·Equipped with electronic photoelectric counting function, convenient for counting

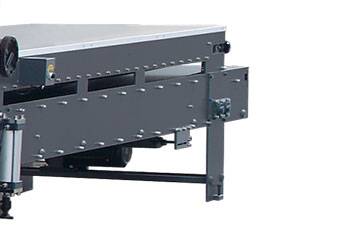

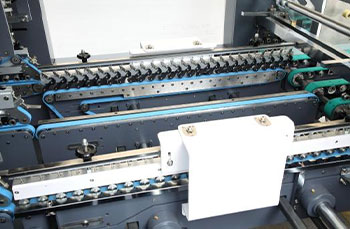

	Conveyor ·Has regulator, patting device Can effectively avoid the "scissors mouth" phenomenon of corrugated products. ·Adopts waiting function It will be automatically enabled when the feeding section is paused ·If has error in paper collection unit it will automatically stop the machine work.
	Spraying System ·Equipped with 3 guns ·Convenient in the production of 4/6 corner box and various special-shaped box ·Gluing quickly and accurately sizing

Straight Line Box
Way of Folding: Three Carriers
Model	1200 Type	1450 Type	1600 Type	1800 Type
B+C+D+E	280-1200	350-1450	350-1600	350-1800
C+D	140	140	175	175
E(Min)	30	30	30	30
E(Max)	500	500	500	500
F	70-1100	70-1100	70-1100	70-1100
G(Max)	1100	1100	1100	1100
Prefolding
D+E(Max)	300	300	300	300
G（Max）	1100	1100	1100	1100
Crash Lock Bottom Box
Way of Folding: Three Carriers
B+C+D+E	280-1200	350-1450	350-1600	350-1800
C+D	140	140	175	175
E(Min)	30	30	30	30
E(Max)	500	500	500	500
F	70-1100	70-1100	70-1100	70-1100
G(Max)	1100	1100	1100	1100
H(Min)	30	30	30	30
L	30-100	30-100	30-100	30-100
