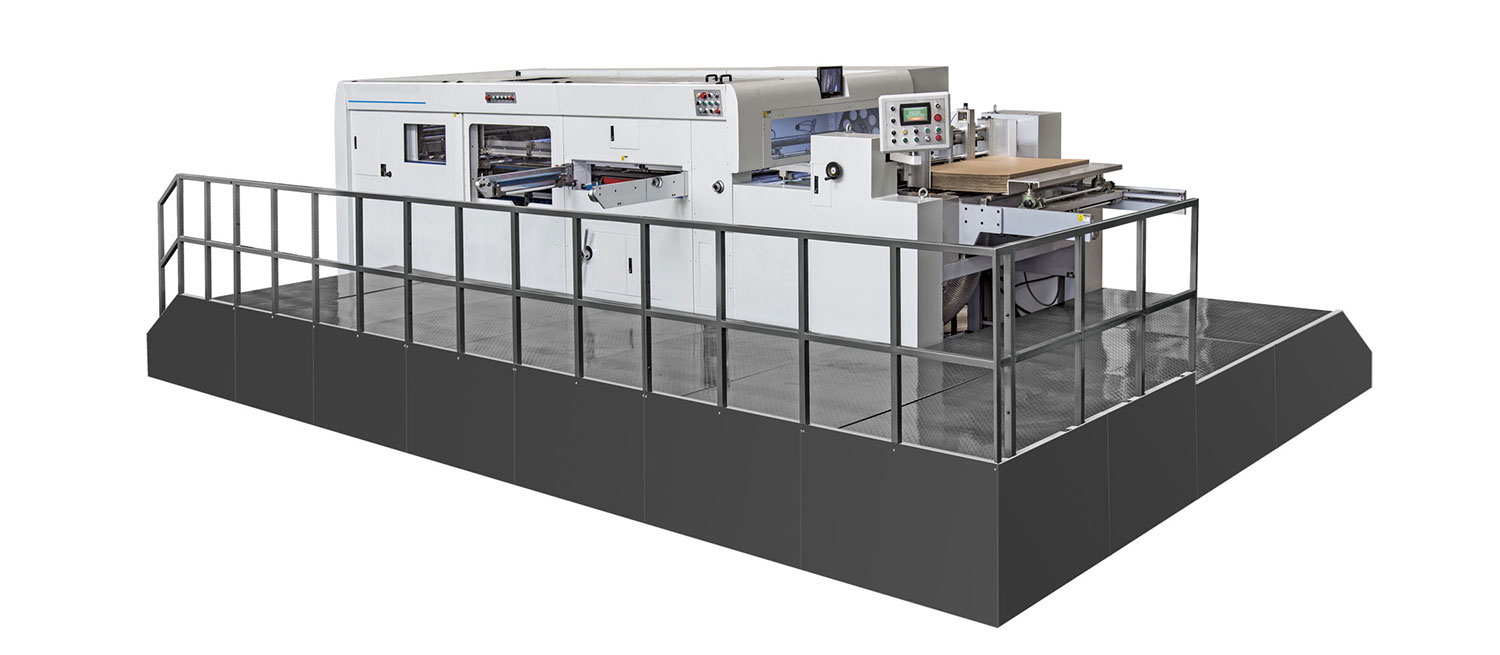

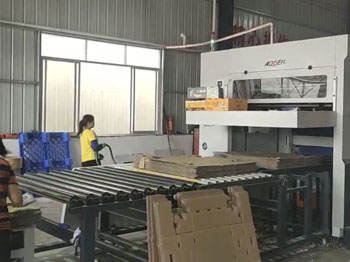

Lead Edge Feeding Automatic Flatbed Die Cutting Machine With Waste Stripping AEM-1650VQ

Features

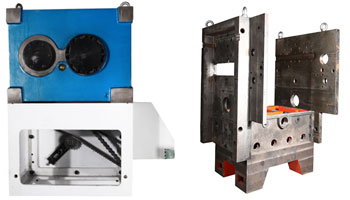

Worm, worm gear and special designed crankshaft connecting device is linked by bearing bush, reduce the movement clearance, avoid impact between worm and worm gear. Run steadily, high cutting pressure. It has a function of high point pressure hold. Worm gear is made of high wear-resisting aluminum bronze, it has long durability.

Non-stop feeding and delivery device can shorten the auxiliary time, improve the efficiency.

Adopt advance cam mechanism, pressure adjusting device, pneumatic die locking, pneumatic sampling, overload protection device. Adopt imported high precision chain, imported pneumatic clutch.

Adopt lead edge feeding, apply secondary positioning mechanism, lower the requirement about paper. During the process, keep the workers hands far away from the cutting section, ensure the safety.

Pneumatic die locking mechanism makes changing of die, makeready more convenient, die frame fix firmer, more accurate, time saving.

Programmable controller and man-machine interface. Digital display the
working speed, processing umber, total running time. The display of trouble makes trouble shooting more convenient. Automatic control and real time  monitor feeding, cutting and delivery parts, cooperate with the safety device in each part. Make the operation more reliable, machine adjustment and trouble shooting more convenient.

High precision intermittent mechanism, high cutting precision, running steadily.

Automatic paper delivery, arranging device makes delivery more convenient and neat.

Floating function of cutting die plate make inserting and pulling out the plate more convenient

Double sheet, crooked sheet, empty sheet optoelectronic detecting device, ensure the paper in the right position, reduce waste.

Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.

Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.

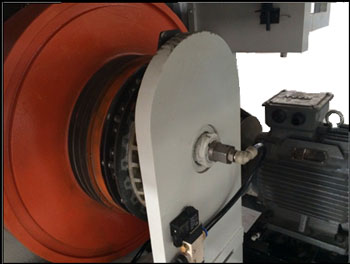

Imported pneumatic clutch, joint and withdraw conveniently, with small brake angle, it can transmit high torque.

Front and rear cutting pressure can be adjust separately, manual wheel makes it convenient.

Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

3 waste stripping frames work together, human-friendly design, easy to install and uninstall the waste stripping plate.

Automatic waste stripping device can remove the waste easily.

Full side stripping is optional.

Non-stop delivery conveyor.

Main technical parameters

Max paper size:	1670x1210mm
Min paper size:	520x460mm
Max cutting size:	1650x1200mm
Cutting precision:	≤±0.15mm
Max cutting pressure:	400N/cmPP2
Max cutting speed:	5500s/h
Delivery stack height:	1300mm
Application:	Corrugated paper:＜8mm
Corrugated paper:	＜8mm
Main motor power:	15KW
Total power:	18.5KW
AEM-1650VQ dimension:	8700x2600(+2300)x2400mm
AEM-1650VQ weight:	28T

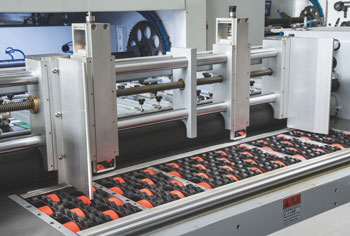

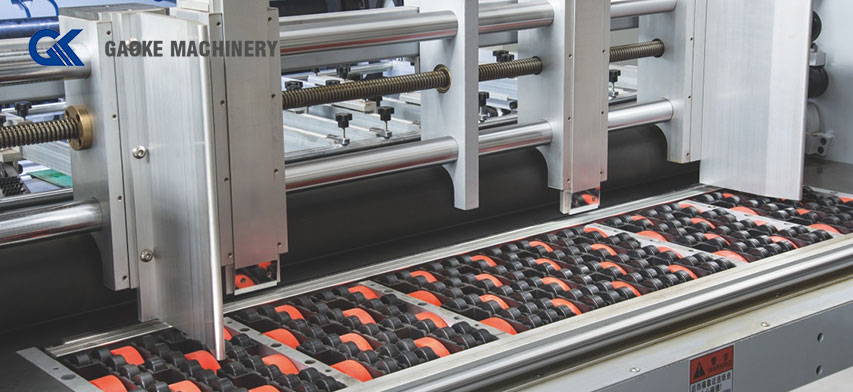

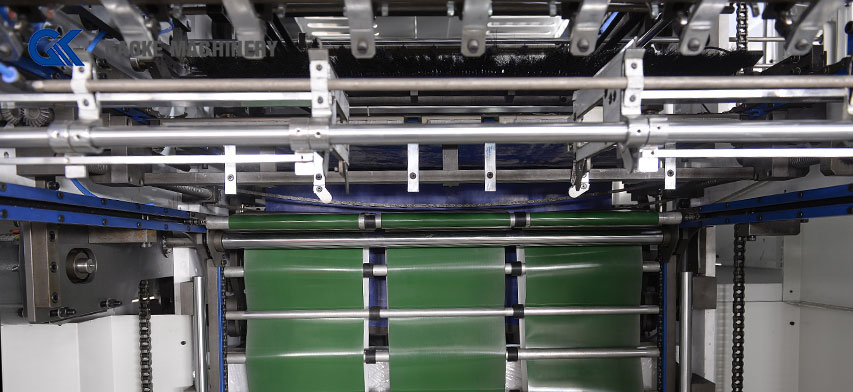

Feeding section: Lead edge feeding system, automatic paper feeding Side lays on both side. Electronic double detector. Wear-resisting PU feeding wheel.
Pressing section: Pneumatic lock-up system to ensure safe and operator friendly changing of the die-cutting plate. Centerline system for quick stripping die set up and job changeover. Human machine interface for monitoring machine's working situation and touch screen control panel for easy operation and malfunctions diagnosis. Heavy duty pneumatic clutch with overload protection for stable and safe machine running.

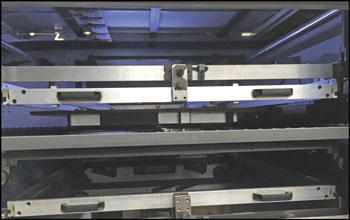

	Stripping section High strength Ti-Al waste stripping frame. Centerline system for quick stripping die set up. Double stripping system and male/female stripping die for different stripping jobs. Front waste separator to achieve full stripping and front waste transferred to the machine drive side by conveyor belt.

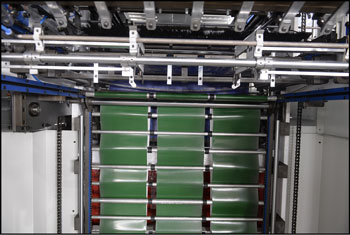

	Delivery section Delivery section with control panel, more human-friendly. Optoelectronic sensor ensure better delivery. Main chain protection device Rolling back preventing device Non-stop delivery system.. Automatic batch counting and output system.

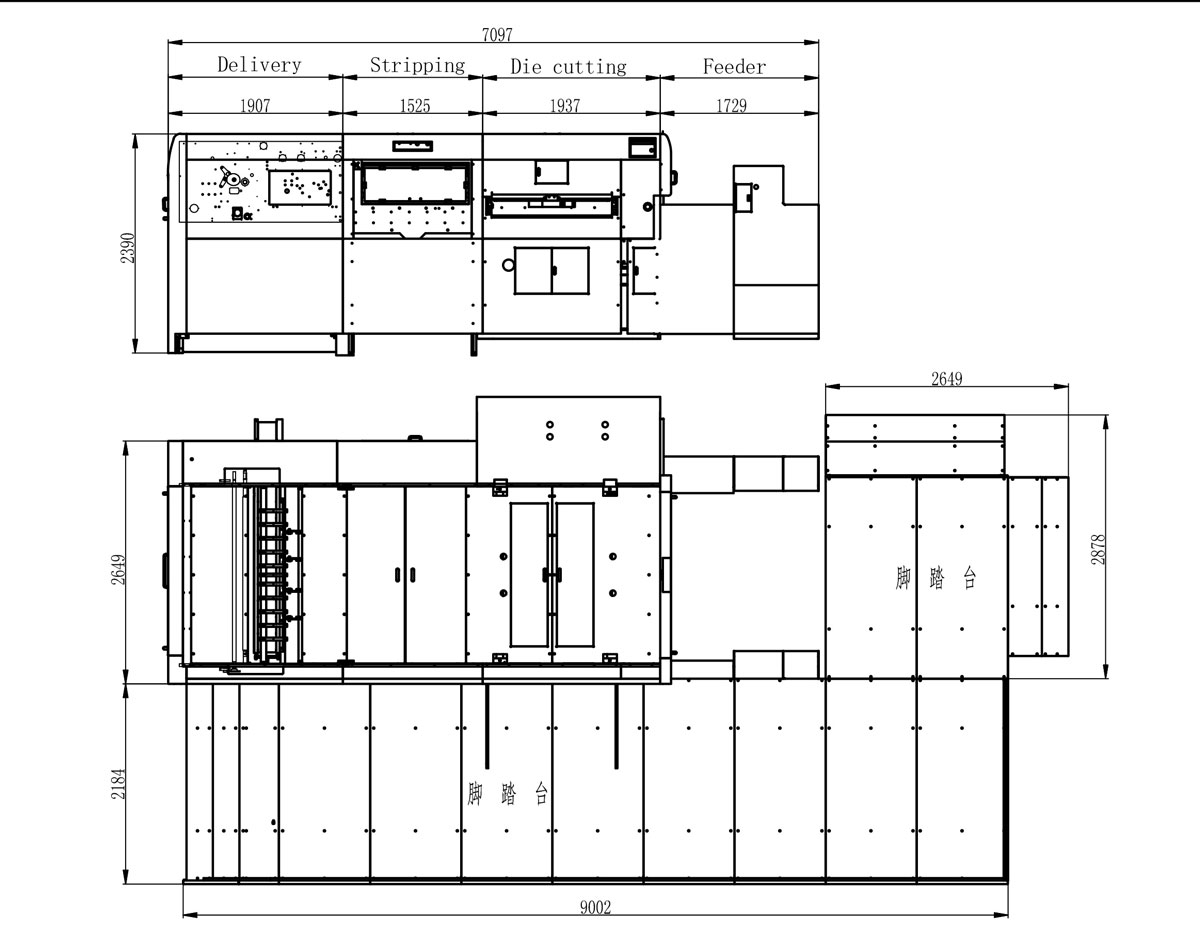

AEM-1650VQ Floor Plan
